Others

For spare parts, we can manufacture the welded structural components and non standard customized parts including various of components of grinding mill, rotary kiln, dryer, centrifuge machine and so on. We can not only provide spare parts for our own complete sets of equipments, but also select and design spare parts suitable for others according to the equipment type specified by customers. In addition, We can also provide spare parts modification service for the equipment you are using now, such as the design modification of grinding mill shell and end cover.

Our Advantage of Other：

ISO 9001:2015, BV, SGS certified.
Strict and mature quality control system.
Most advanced manufacturing facilities of large sized forging & casting parts in China from smelting to machining (below shown in table).
Strong capability from designing, manufacturing to installation.
Accept inspection by the third party.
All kinds of material are available, such as spheroidal graphite cast iron, gray cast iron, forging alloy steel, forging carbon steel and so on.
OEM & ODM for many famous companies in the word.

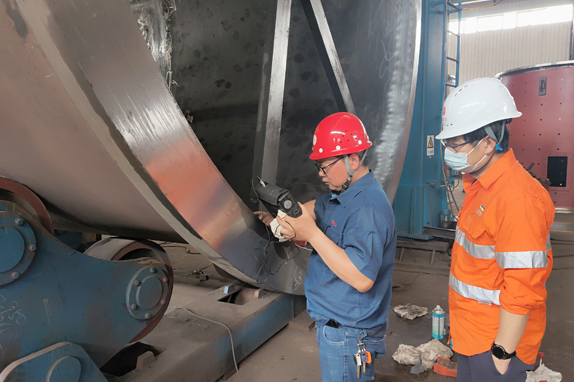

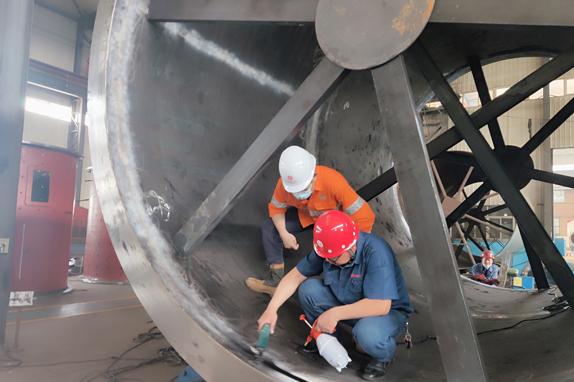

Supply all inspection reports, such as dimension, hardness, chemical composition, UT, MT, PT, etc. Inspection reports.

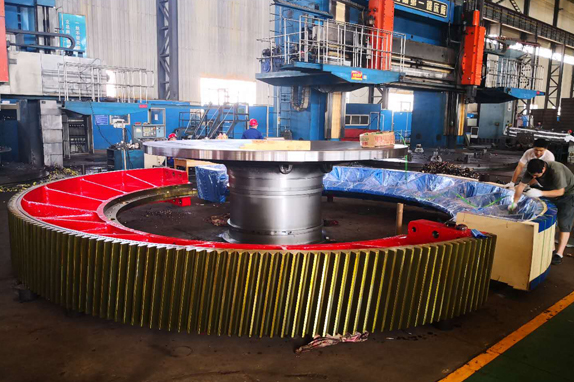

Girth gear with max module of 45 and max diameter of 15m
Shafts with max diameter of 2m and max length of 20m
Forged ring with max. diameter of 12m

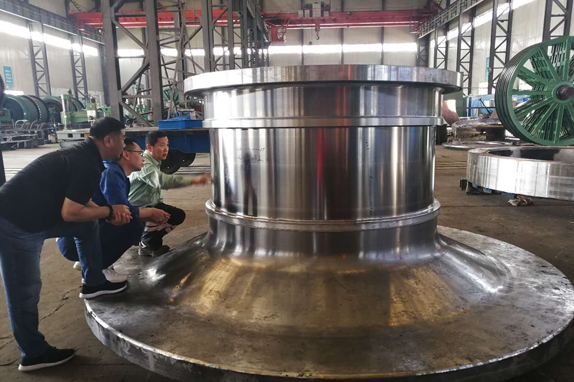

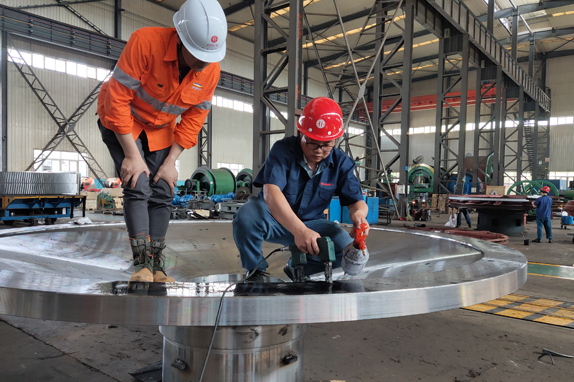

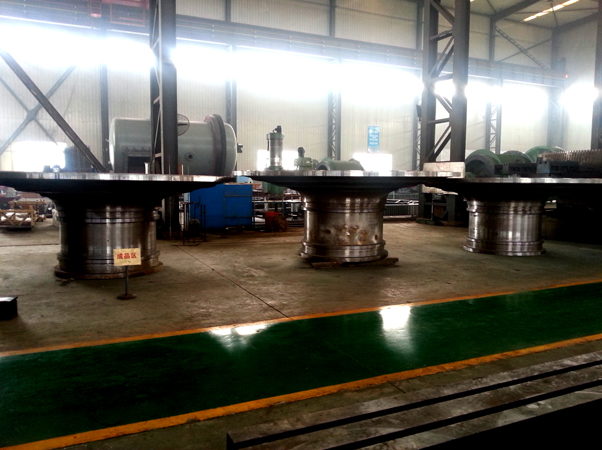

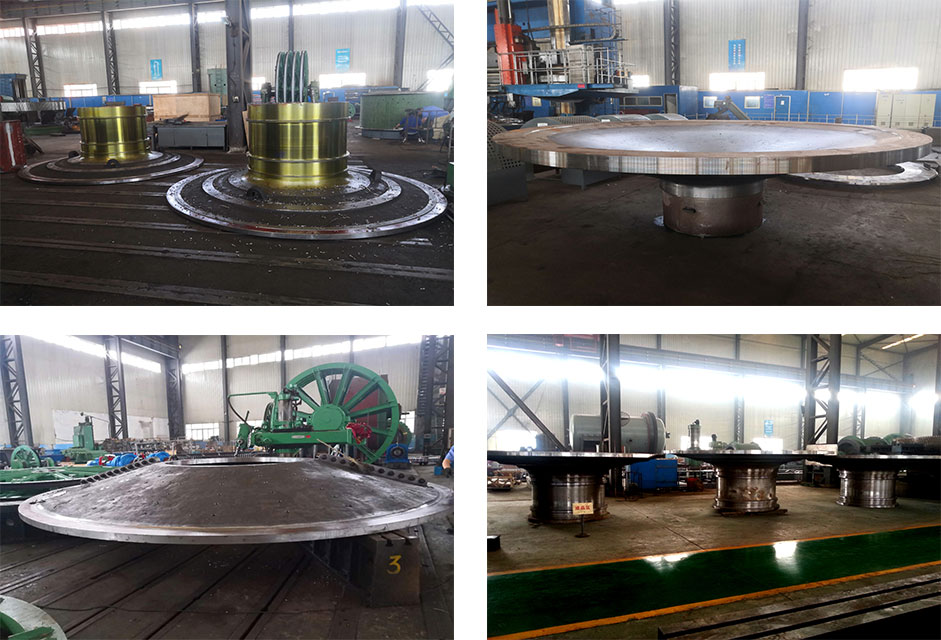

Exhibition of End Cover

Exhibition Of End Cover

Facilities For Manufacturing Spare Parts

No.	Item	Description
1	Smelting & Casting Capability	40t, 50t, 80t Series AC Electric Arc Furnace 2×150t, 60t LF Ladle Refining Furnace 150t, 60t Series VD/VOD Furnace 20×18m Large Pouring Facility We can pour 900t refining liquid steel one time, and achieve vacuum poured 600t steel ingots. We can produce high-quality steel of more than 260 steel grades as carbon steel, structural alloy steel and the structural steel, refractory steel and stainless steel of special requirement. The maximum weight of casting steel, gray casting, graphite cast iron and non-ferrous casting is 600t, 200t, 150t and 20t separately.
2	Forging Capability	The only one in the word, the most technologically advanced and the largest specification 18500t Oil Press, equipped with 750t.m forging operation machine 8400t Water Press 3150t Water Press 1600t Water Press Φ5m High Precision Ring Mill ( WAGNER, Germany) Φ12m High Precision Ring Mill We can roll rings of different sections of carbon steel, alloy steel, high-temperature alloy steel and non-ferrous alloys such as copper alloy, aluminum alloy and titanium alloy. Max. The diameter of rolled ring will be 12m.
3	Heat Treatment Capability	9×9×15m, 8×8×12m, 6×6×15m, 15×16×6.5m, 16×20×6m, 7×7×17m Series Heat Furnace and Heat Treatment Furnaces φ2.0×30m, φ3.0×5.0m Series Heat Treatment Furnaces φ5.0×2.5m, φ3.2×1.5m, φ3.0×5.0m, φ2.0×5m Series Carburizing Furnaces & Nitriding Furnaces & Quenching Bathes φ2.0×30m Well Type CNC Electrical Furnaces Φ3.0×5.0M Horizontal Gas Temperature-differential Furnace Double-frequency and Double-position Quenching Lathe of Pinion Shaft
4	Machining Capability	1. ≥Ф5m CNC Heavy-Duty Vertical Lathes Ф12m CNC Double-column Vertical Lathe Ф10m CNC Double-column Vertical Lathe Ф10m CNC Single-column Vertical Lathe Ф6.3m Heavy-Duty Vertical Lathe Ф5m CNC Heavy-Duty Vertical Lathe
		2. Horizontal Lathes Ф6m×20m Heavy Duty Horizontal Lathe Ф2m×10m Heavy Duty Horizontal Lathe Ф2m×8m CNC Heavy Duty Horizontal Lathe
		3. ≥Ф5m Vertical Gear Hobbing Machines Ф15m CNC Vertical Gear Hobbing Machine Ф10m Gear Hobbing Machine Ф8m Gear Hobbing Machine Ф5m Gear Hobbing Machine Ф3m Gear Hobbing Machining
		4. Imported High-precision Gear Grinding Machines Ф0.8m～Ф3.5m CNC Molding Gear Grinding Machines
		5. Large Boring & Milling Machines Ф220 CNC Floor-mounted Boring & Milling Machine Ф200 CNC Floor-mounted Boring & Milling Machine Ф160 CNC Floor-mounted Boring & Milling Machine
