Pinion Shaft

CIC is a more than 50 years pinion shaft manufacturer and reputed supplier of forged pinion and pinion shaft widely used in various machinery equipments in the fields of mining, metallurgical, chemical industry, construction and so on. CIC possesses professional design team, advanced equipment and detecting method, strict quality control system to meet all the customized requirements of forged pinion or pinion shaft. Excellent performances, high quality and competitive price will make you rely on us and choose us. CIC has manufactured many kinds of forged parts, include forged pinion, forged roller, support roller forged shafts, thrust roller forged shafts, forged pinion gear shaft both mounted to the shaft and as a part of the shaft, and other more kinds of forged shafts.

Feature of Pinion Shaft

Material: stainless steel, carbon steel, alloy steel and as your requests.
Standard: ANSI, API, ASTM, BSI, DIN, GB, ISO, JIS and more standards.
Mechanical Properties: customized requirements are accepted.
Hardness: customized requirements are accepted.
Surface treatment: rust preventive oil and according to your requirements.
Application: mainly used in various machinery equipment in the fields of mining, metallurgical, chemical industry, construction and so on.
QA and DOC: chemical composition report, mechanical properties report, UT report, PT report, heat treatment report, dimensions check report, hardness report and more.
We can offer third-party inspection.
Process: raw material purchasing - forging - rough machining (rough hobbing)- heat treatment - semi machining (semi-final hobbing) - hardening of tooth surfaces - finish machining (gear grinding) - painting and packing.
Various process conditions are available.
Certificates: ISO 9001:2015
Products ability: Max module: 45
Heat treatment: quenching and tempering, normalizing and tempering.
Tooth surface treatment: carburizing and quenching, surface quenching.
QC: fabrication schedule, fabrication process chart, inspection and test plan.
Packing: coated with rust preventive oil, seaworthy packing.

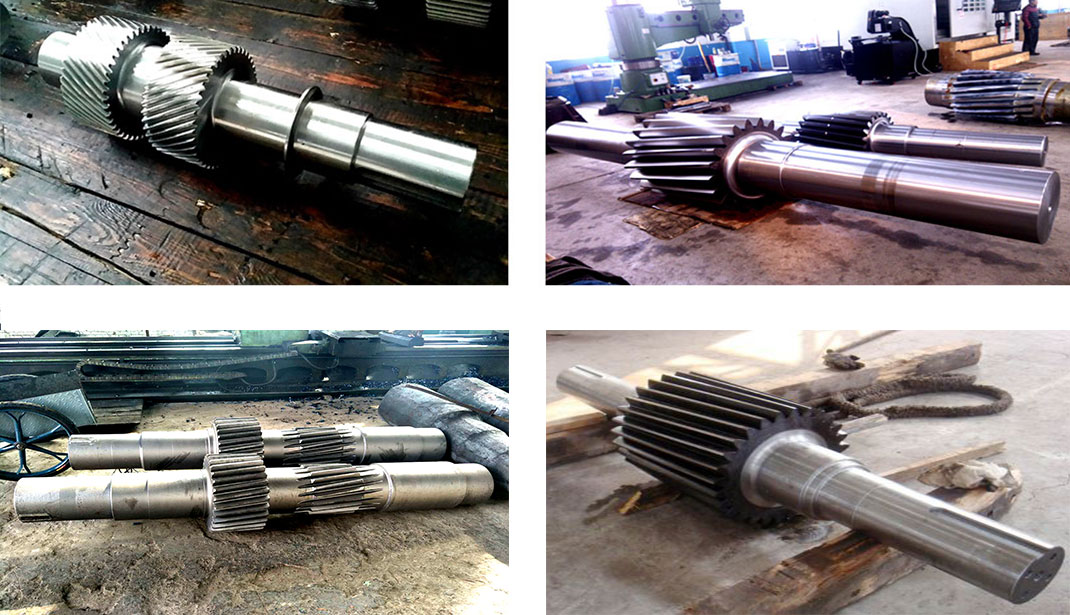

Feature Of Pinion Shaft

Our Advantage of Pinion Shaft

More than 30-year experience
SO9001:2015 Standard certified
Custom-made design
All seamless forged
Strict quality control
Prompt delivery

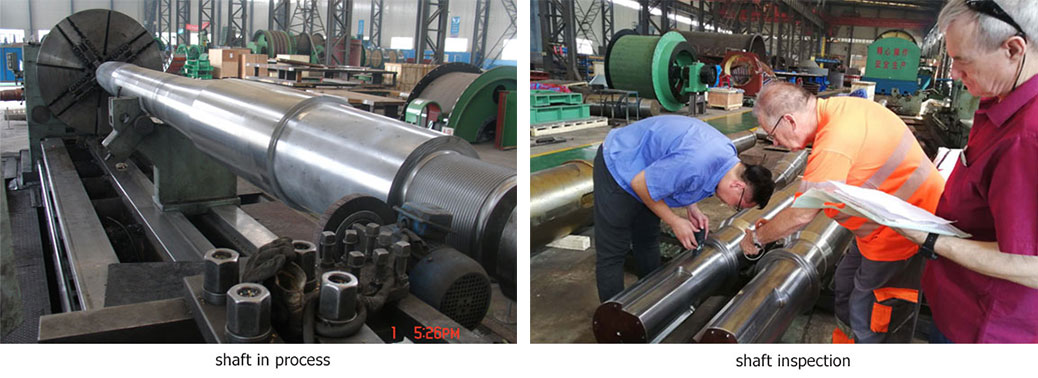

Technical Parameter of Pinion Shaft

Name	Pinion Shaft
Material	Forging carbon steel, forging alloy steel
Diameter	Max. 2m
Length	Max. 20m
Module	Max. 45

Part Performance of Pinion

Material	OD/mm	module	application	client
30CrNiMo8	1201	39	Cement Rotary Kiln	KHD
30CrNiMo8	914	30	Cement Mill
30CrNiMo8	1252	42	Cement Rotary Kiln
30CrNiMo8	1252	42	Cement Rotary Kiln
30CrNiMo8	1252	42	Cement Rotary Kiln
30CrNiMo8	1201	39	Cement Rotary Kiln
30CrNiMo8	1520	45	Cement Rotary Kiln
30CrNiMo8	1092	42	Cement Rotary Kiln
42CrMo	420	20	Fertilizer granulator	Malaysia
42CrMo	475	25	Fertilizer Dryer	Malaysia
17CrNiMo6	683	20.32	/	Venezuela
42CrMo	550	25	Dryer	Japan TSK
45	420	20	Dryer	Japan TSK
17CrNiMo6	880	40	/	Venezuela
ASTM 4340	828	36	/	Peru
42CrMo4	700	25	/	Egypt
42CrMo	500	20	Fertilizer Dryer	Malaysia
41MoCr11	879	28	/	Romania
17Cr2Ni2Mo	745	25.4	Rotary Kiln	Korea
